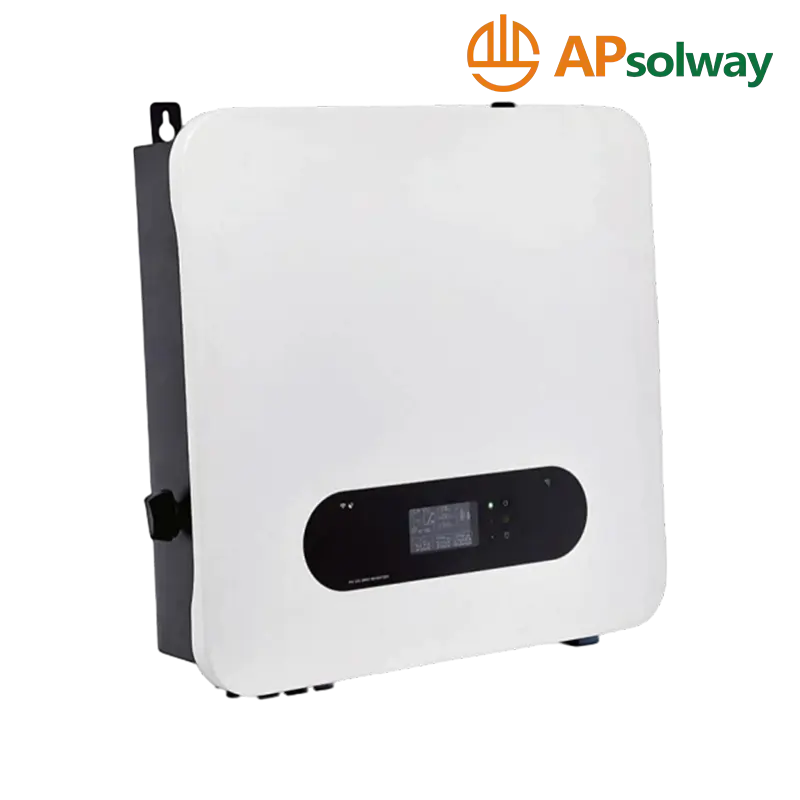

TP Pro Series High-Efficiency Three Phase Solar GTI
- The TP Pro Series High-Efficiency Three Phase Solar GTI is designed to deliver optimal performance for both residential and commercial solar systems. With cutting-edge technology and exceptional efficiency, this inverter maximizes energy conversion, ensuring that every bit of sunlight is harnessed to its full potential.
- One of the standout features of the TP Pro Series is its high conversion efficiency, allowing it to operate at peak levels even under fluctuating environmental conditions. It ensures more power generation and savings on energy bills, making it an eco-friendly and cost-effective solution.
- The inverter is also highly durable, built to withstand harsh weather conditions and offer long-lasting performance. Remote monitoring capabilities provide real-time insights into energy production, enabling users to track performance and troubleshoot remotely, ensuring peace of mind. Its three-phase capability enhances grid stability, making it ideal for larger-scale installations that require consistent, high-power output.
Product Parameters
| 4.0KW/5.0KW/6.0KW/8.0KW/10.0KW/12.0KW/15.0KW | |||
 |
Big LCD display |  |
Power export limit |
 |
Compact and easy to install |  |
Wifi/GPRS/Lan communication optional |
RELATED PRODUCTS
AHS-12 12kW Solar Battery Hybrid Controller
- As the flagship model of the AHS series, the AHS-12 delivers a rated output power of up to 12 kW, with a peak load capacity reaching an impressive 24 kVA—sufficient to simultaneously power a full suite of high-end household appliances. This model employs dual-loop technology to generate high-quality sine wave output and optimizes peak efficiency in battery mode to 96.1%, ensuring minimal energy loss during the conversion process.
- The AHS-12 marks a significant breakthrough in PV integration capabilities; its built-in dual MPPT controllers support a solar input power of up to 15,000 W. With a maximum PV input current increased to 27A + 27A, the unit is perfectly compatible with the high-power solar modules currently dominating the market. Designed to accommodate large-scale energy storage systems, the unit features a maximum charging current of 250A and supports parallel operation of up to six units, thereby meeting users' future requirements for power system expansion. In terms of safety, the AHS-12 integrates comprehensive protection mechanisms against short circuits, overvoltage, undervoltage, and overload, and includes a dedicated low-battery voltage input protection function.
- Featuring an IP54-rated protective design and weighing just 14.5 kg, the AHS-12—combined with a powerful interactive LCD interface and a smart cloud-based O&M platform—offers users worldwide an exceptionally reliable, efficient, and eco-friendly power solution backed by a 5-year warranty.
AHS-6.3 6.3kW Solar Battery Hybrid Controller
- AHS-6.3 6.3kW Solar Battery Hybrid Controller is an intelligent hybrid power controller designed to provide modern households with efficient solutions for both off-grid and on-grid energy storage management. As the foundational model of the AHS series, it features a rated capacity of 6.3 kW and a peak output power of up to 12.6 kVA, enabling it to effortlessly handle household appliances with high startup current requirements. The device employs advanced DSP control and dual-loop technology to deliver a pure sine wave output, thereby ensuring the electrical safety of sensitive electronic equipment.
- Regarding PV integration, the AHS-6.3 is equipped with a high-performance MPPT controller that supports a maximum PV input power of 6500 W, boasting an MPPT efficiency of up to 99.9%. Its MPPT operating voltage range spans 60–450 VDC, with a maximum input current of 22 A. In terms of battery management, the unit offers seamless compatibility with both lithium-ion and lead-acid batteries; it also features a lithium battery activation function and supports BMS communication via RS485 or CAN interfaces.
- Furthermore, this model holds an IP54 protection rating and incorporates an intelligent air-cooling design, significantly enhancing its reliability and operational lifespan within challenging environments. Users can configure power supply priority modes—selecting between PV, utility grid, or battery sources—via the integrated LCD screen, and utilize a dedicated mobile app for 24-hour intelligent energy monitoring. The product weighs 12.8 kg, measures 380 × 576 × 141 mm, and is backed by a 5-year manufacturer's warranty.
APS6500-48 6.5kW Single Phase Off-Grid Inverter
- APS6500-48 6.5kW Single-Phase Off-Grid Inverter features a rated output power of 6.5kW and a peak surge capacity of up to 13kVA, enabling it to reliably drive highly inductive loads such as air conditioners, large refrigerators, and power tools. Utilizing a pure sine wave output, it supports 208/220/230/240V voltage systems, ensuring high-quality and compatible power delivery. Designed as a 48V system solution, it achieves a peak efficiency of 93% in battery mode, effectively minimizing energy losses during the conversion process.
- In terms of solar energy utilization, the APS6500-48 delivers exceptional performance. It features a built-in 120A MPPT solar charge controller, supporting a maximum PV input power of 9000W. Its wide MPPT operating voltage range (60–450V) and a maximum input current of up to 28A allow it to be compatible with the majority of high-power solar panels currently available on the market. This model offers full compatibility with both lithium-ion and lead-acid batteries, featuring a lithium battery activation function and the capability to communicate with the battery's BMS via RS485. Furthermore, the device supports dual AC outputs and grid-tie functionality (Feed-in to Grid); combined with its built-in Wi-Fi monitoring module, users can achieve intelligent, round-the-clock energy management.
SPH3K-24/48 3.0kW Single Phase Solar off grid inverter
- SPH3K-24/48 3.0kW Single Phase Solar off grid inverter features a rated output power of 3.0 kW and delivers a peak power of up to 4500 VA, enabling it to effectively support the instantaneous startup of loads in small homes or offices.
- This inverter utilizes a pure sine wave output, ensuring high-quality and stable power delivery. One of its most significant design highlights is its battery-free operation mode; it can utilize PV energy to supply power even without a connected battery, thereby greatly enhancing system flexibility.
- Regarding PV energy harvesting, the SPH3K-24/48 incorporates a high-performance built-in MPPT controller with an efficiency rating of up to 99%. It supports a maximum PV array power of up to 3600 W, with a wide PV input voltage range spanning from 70 to 280 Vdc. The device is compatible with both 24V and 48V battery systems—supporting both lithium-ion and lead-acid batteries—and integrates a lithium battery activation function as well as BMS communication capabilities via RS485.
- To withstand demanding installation environments, the unit features built-in dust-protection components, achieving an IP43 protection rating.
