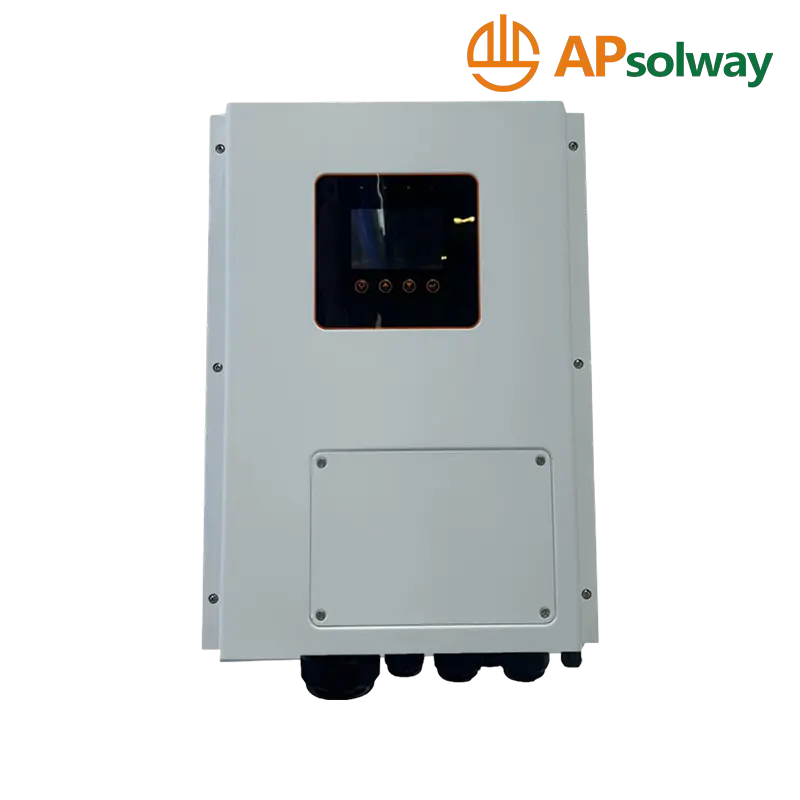

HCC04-SM-0060H-YP High Efficiency Single Phase Hybrid Inverter
- 1. Colorful touch LCD, IP66 protection degree, 6 time periods for battery charging/discharging.
- 2. Max.16 pcs parallel for on-grid and off-grid operation, Support mutiple batteries parallel.
- 3. Support storing energy from diesel generator, Ac coupling to retrofit existing solar system.
- Single-phase output, suitable for household electricity use.
- Provides stable single-phase power output, ideal for homes, villas, small offices, etc.
- Can directly replace traditional grid power, enabling seamless integration of household solar power generation and energy storage systems.
Product Parameters
 |
 |
 |
| Colorful touch LCD, Ip66 protection degree | Ac coupling to retrofit existing solar system | Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel |
 |
 |
|
| 6 time periods for battery charging/discharging | Support storing energy from diesel generator |
RELATED PRODUCTS
AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller
- AHS-5-LV 5.0kW US-standard Solar Battery Hybrid Controller has been extensively optimized for 110V/115V/120V voltage systems, fully complying with U.S. electrical standards; it represents an ideal choice for residential energy storage and small-scale commercial applications. At its core, the unit employs DSP control and dual-loop technology to deliver a stable, pure sine wave output, thereby ensuring a high-quality power supply for sensitive loads.
- In terms of performance specifications, the AHS-5-LV demonstrates exceptional energy conversion efficiency. It features a rated output power of 5.0kW, coupled with robust peak load-bearing capabilities, allowing for an instantaneous surge power of up to 10,000VA. The device incorporates a built-in, high-efficiency MPPT charge controller capable of supporting a maximum solar PV input of 6,000W; with an MPPT efficiency reaching as high as 99.9%, it ensures maximum energy harvesting across varying lighting conditions. Regarding conversion efficiency, the peak efficiency for PV-to-inverter conversion reaches 96%, while battery-to-inverter efficiency stands at an impressive 94.5%. The unit supports 48V battery systems and offers full compatibility with both lithium-ion and lead-acid batteries, featuring a lithium battery activation function as well as BMS communication capabilities via RS485 or CAN interfaces.
- Designed to withstand harsh operating environments, the AHS-5-LV features an IP54 protection rating, effectively shielding the unit against dust and moisture to significantly enhance system reliability and service life. Its intelligent air-cooling design—combined with comprehensive protection mechanisms against short circuits, overvoltage, undervoltage, and overload—provides multiple layers of safety assurance for system operation. Furthermore, to accommodate future expansions in power demand, this model supports parallel operation of up to six units, enabling users to easily construct larger-capacity power systems.
APS6500 Pro-48 1.2kW Single Phase Off-Grid Inverter
- APS6500 Pro-48 1.2kW Single-Phase Off-Grid Inverter is a "Professional Edition" single-phase off-grid inverter that builds upon the standard version by significantly enhancing connectivity flexibility and system integration capabilities. While its core power performance remains identical to the standard model—boasting a rated capacity of 6.5kW and a momentary peak power of 13kVA—the "Pro" series introduces a suite of advanced, industrial-grade features.
- The most distinctive characteristic of this model is its support for "Dual AC Inputs" and "Dual AC Outputs." This functionality enables the system to connect simultaneously to both the utility grid and a generator, intelligently switching the power source for the load based on pre-configured priorities. Furthermore, it supports Meter/CT connectivity and automatic transfer switch (ATS) control for generators, thereby vastly elevating the level of automation in energy management.
- In terms of hardware configuration, the APS6500 Pro-48 features the same robust built-in 120A MPPT charge controller, supporting a maximum PV open-circuit voltage of 520V and a solar input capacity of 9000W. This ensures exceptionally high charging efficiency, even under challenging lighting conditions. The device employs DSP control and dual-loop technology to deliver a stable, pure sine wave output, achieving an exceptionally high power density relative to other products in its power class. In addition to supporting lithium battery activation and offering a comprehensive array of interfaces—including RS232, USB, and RS485—it provides real-time cloud-based monitoring services via built-in Wi-Fi. With its superior hardware-software integration capabilities and a 2-year warranty commitment, the APS6500 Pro-48 stands as a premier choice for constructing high-end off-grid microgrid systems.
EZOG IP67 Single-phase Hybrid Microinverter for Storage
- EZOG is a single-phase hybrid energy storage micro-inverter, specifically designed for 220V, 230V, and 240V voltage systems. A key technical highlight of this product is its integrated GaN (Gallium Nitride) chip, which enables it to support continuous fast charging at 40A, thereby significantly enhancing energy processing efficiency. Featuring a fanless design, the EZOG ensures ultra-quiet operation; combined with its system-wide IP67 protection rating, it is suitable for installation in a wide range of harsh outdoor environments—including AC-coupled applications for balcony-based micro-inverter systems.
- In terms of performance specifications, the EZOG boasts a rated output power of 1200VA, with a peak output power reaching 1800VA within 10 seconds, ensuring excellent adaptability to load fluctuations. The PV input terminal is recommended for connection with modules ranging from 430Wp to 900Wp+, operating within an MPPT voltage range of 12V to 48V. The inverter supports 51.2V low-voltage battery inputs, featuring a maximum charging current of 40A and a peak discharge efficiency of up to 95.5%. Furthermore, the EZOG integrates a 24-hour intelligent energy management system, allowing users to utilize the built-in Wi-Fi and Bluetooth capabilities—via the AP EasyPower App—for convenient remote operation, maintenance, and real-time monitoring. With its compact dimensions and a weight of just 8kg, backed by a 5-year manufacturer's warranty, the EZOG represents an ideal choice for building intelligent, miniaturized home energy storage systems.
SPH3K-24/48 3.0kW Single Phase Solar off grid inverter
- SPH3K-24/48 3.0kW Single Phase Solar off grid inverter features a rated output power of 3.0 kW and delivers a peak power of up to 4500 VA, enabling it to effectively support the instantaneous startup of loads in small homes or offices.
- This inverter utilizes a pure sine wave output, ensuring high-quality and stable power delivery. One of its most significant design highlights is its battery-free operation mode; it can utilize PV energy to supply power even without a connected battery, thereby greatly enhancing system flexibility.
- Regarding PV energy harvesting, the SPH3K-24/48 incorporates a high-performance built-in MPPT controller with an efficiency rating of up to 99%. It supports a maximum PV array power of up to 3600 W, with a wide PV input voltage range spanning from 70 to 280 Vdc. The device is compatible with both 24V and 48V battery systems—supporting both lithium-ion and lead-acid batteries—and integrates a lithium battery activation function as well as BMS communication capabilities via RS485.
- To withstand demanding installation environments, the unit features built-in dust-protection components, achieving an IP43 protection rating.
