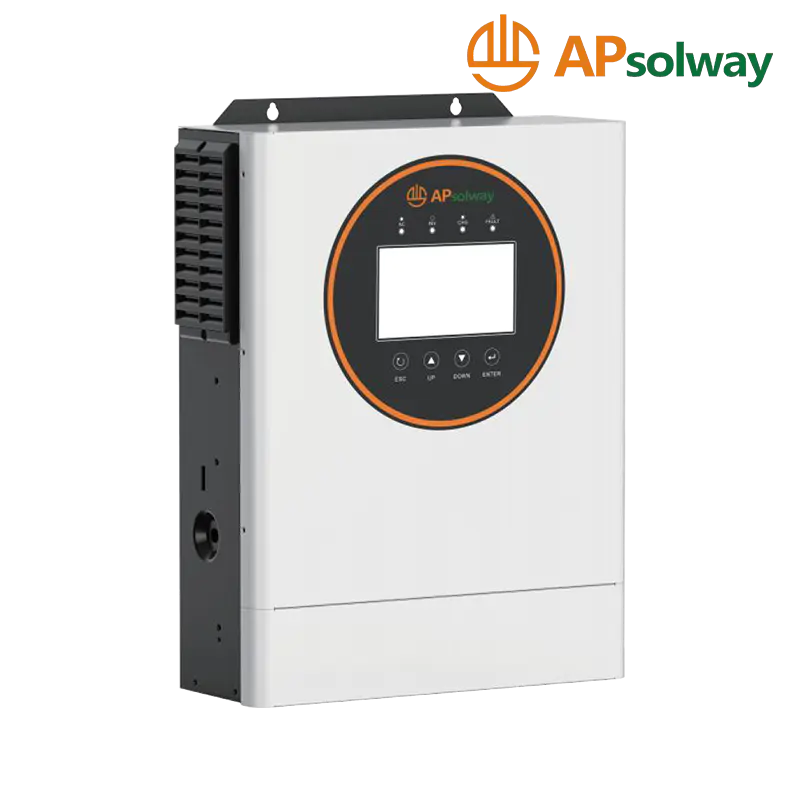

APS6500-48 6.5kW Single Phase Off-Grid Inverter
- APS6500-48 6.5kW Single-Phase Off-Grid Inverter features a rated output power of 6.5kW and a peak surge capacity of up to 13kVA, enabling it to reliably drive highly inductive loads such as air conditioners, large refrigerators, and power tools. Utilizing a pure sine wave output, it supports 208/220/230/240V voltage systems, ensuring high-quality and compatible power delivery. Designed as a 48V system solution, it achieves a peak efficiency of 93% in battery mode, effectively minimizing energy losses during the conversion process.
- In terms of solar energy utilization, the APS6500-48 delivers exceptional performance. It features a built-in 120A MPPT solar charge controller, supporting a maximum PV input power of 9000W. Its wide MPPT operating voltage range (60–450V) and a maximum input current of up to 28A allow it to be compatible with the majority of high-power solar panels currently available on the market. This model offers full compatibility with both lithium-ion and lead-acid batteries, featuring a lithium battery activation function and the capability to communicate with the battery’s BMS via RS485. Furthermore, the device supports dual AC outputs and grid-tie functionality (Feed-in to Grid); combined with its built-in Wi-Fi monitoring module, users can achieve intelligent, round-the-clock energy management.
Product Parameters
| MODEL | APS6500-48 |
| AC Input | |
| Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE |
| Voltage Range (VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
| Frequency(Hz) | 50/60(Auto Adaptive) |
| AC Output | |
| Rated Capacity (kW) | 6.5 |
| Surge Power (kVA) | 13 |
| Voltage(VAC) | 208/220/230/240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 10(normal mode)/10(UPSmode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity(Battery Mode) | 10min@102%-120%Load,1min@120%-150%Load 10S@150%-200%Load,5s@>200%Load |
| Max.Efficiency (Battery Mode) | 93%@48VDC |
| Parallel Operation Support | NA |
| Charger (PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV input current/power | 28A/9000w |
| MPPT Range@Operating Voltage (VDC) | 60-450 |
| Max PV Open Circuit Voltage (VDC) | 520 |
| Max PV Charge Current(A) | 120 |
| Max AC Charge Current(A) | 120 |
| Max. Charge Current (PV+AC)(A) | 120 |
| Battery | |
| Rated Voltage(VDC) | 48 |
| Floating Charge Voltage(VDC) | 54 |
| Overcharge Protection(VDC) | 61 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interface | RS485/USB/Dry Contact/CT/Meter |
| Monitoring | WiFi(built-in) |
| General Data | |
| Ingress Protection | IP43 |
| Warranty | 2 years |
| Operating Temperature | -10℃-50℃ |
| Relative Humidity | 5%~95%(Non-condensing) |
| Storage Temperature | -15℃-60℃ |
| Net Weight(kg) | 10.7 |
| Dimensions(W*H*D) | 514*338*136.5mm |
| Max. Operating Altitude | 4000m(Derating above 1000m) |
Product specifications are subject to change without further notice.
