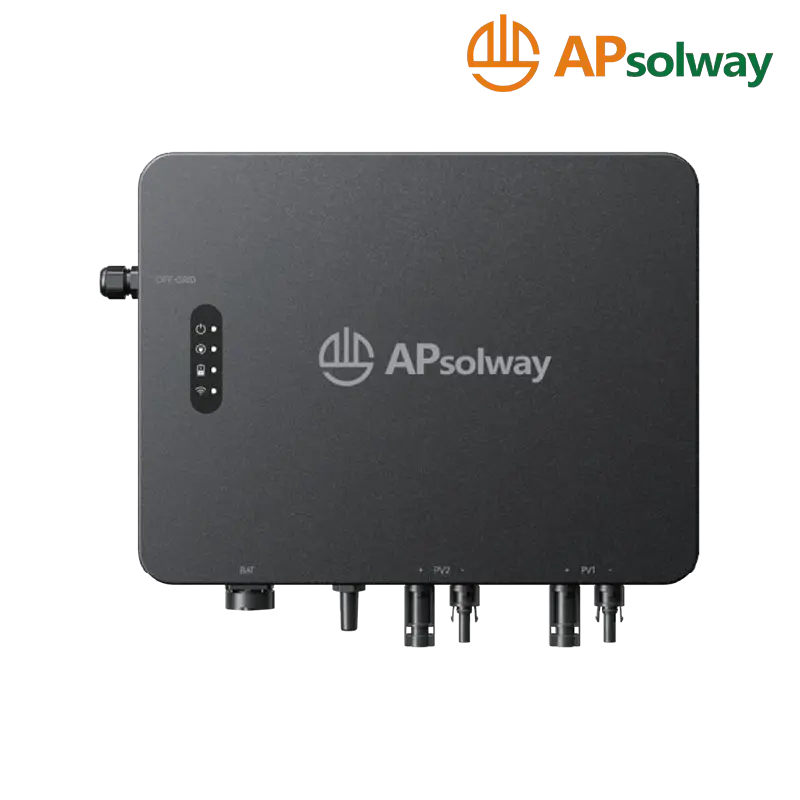

EZOG-LV IP67 US-standard Hybrid Microinverter for Storage
- EZOG-LV is a US-standard hybrid energy storage micro-inverter developed specifically for the North American market and related regions, designed for compatibility with 110V, 120V, and 127V voltage systems. As a key member of Anyu Technology’s EZOG series, it integrates advanced technologies to support highly efficient energy conversion and storage operations. Upholding the series’ core design philosophy of high performance and exceptional reliability, the EZOG-LV features natural convection cooling (fanless operation) and an IP67 dust and water protection rating; this ensures extremely quiet operation while effectively safeguarding the unit against harsh weather conditions.
- In terms of technical specifications, the EZOG-LV offers a rated output capacity of 1000VA, with a peak output capability reaching 1500VA (sustained for 10 seconds). Its PV-side design offers great flexibility, featuring an MPPT voltage range of 12V–48V and a maximum continuous input current of 17A × 2. Regarding energy storage conversion efficiency, the EZOG-LV delivers outstanding performance, achieving a maximum efficiency of up to 96.2%. The device supports 51.2V low-voltage battery systems and boasts robust scalability, allowing for capacity expansion through the parallel connection of multiple battery packs. To enhance user experience, the EZOG-LV features a built-in dual-mode communication module (Wi-Fi + Bluetooth); when paired with the EMA intelligent O&M platform, it provides users with comprehensive, round-the-clock energy monitoring and management capabilities. The product features a compact design—weighing in at just 8 kg—ensuring quick and effortless installation.
Product Parameters
| MODEL | EZOG-LV |
| PV Input | |
| Recommended PV Module Power(STC) Range(l) | 430Wp-900Wp+ |
| Operating voltage range | 12V-60V |
| Maximum input voltage | 60V |
| MPPT voltage range | 12V-48V |
| Start-up voltage | 18V |
| Maximum continuous input current | 17A×2 |
| Isc PV | 25A×2 |
| AC Input and Output(off-grid Port) | |
| Grid type | Single-phase |
| Nominal AC voltage(2) | 110V/120V/127V |
| Nominal AC frequency(2) | 60Hz |
| Maximum continuous output power | 1000VA |
| Peak output apparent power | 1500VA,10s |
| Maximum continuous output current | 9.09A |
| Maximum continuous input power | 1000VA |
| Maximum continuous input current | 9.09A |
| Battery Ratings(Battery Port) | |
| Battery voltage range | 40-60VDC |
| Nominal battery voltage | 51.2V |
| Communication Ports | CAN |
| Maximum Continuous Discharge Power | 1000VA |
| Peak Discharge Power | 1500VA,10s |
| Maximum discharge current | 27A |
| Maximum charge current | 40A |
| General Specifications | |
| Dimensions W/H/D | 351mm×269mm×47mm |
| Weight | 8KG |
| Maximum Efficiency | 96.2% |
| Operating Ambient Temperature Range | -40℃-55℃ |
| Storage Temperature Range | -40℃-85℃ |
| Ingress Protection | IP67 |
| Warranty | 5years |
| Relative Humidity | 10%-90% |
| Cooling | Natural Convection-No Fans |
| Maximum Altitude | <2000m |
| Pollution Degree Classification | PD3 |
| Protective class | I |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Energy Management | AP Easy Power APP |
| Compliances | |
| Safety, EMC Compliances | IEC62109-1/-2;IEC62477-1;IEC 61000-6-1/-2/-3/-4;IEC 62920 |
Product specifications are subject to change without further notice.
