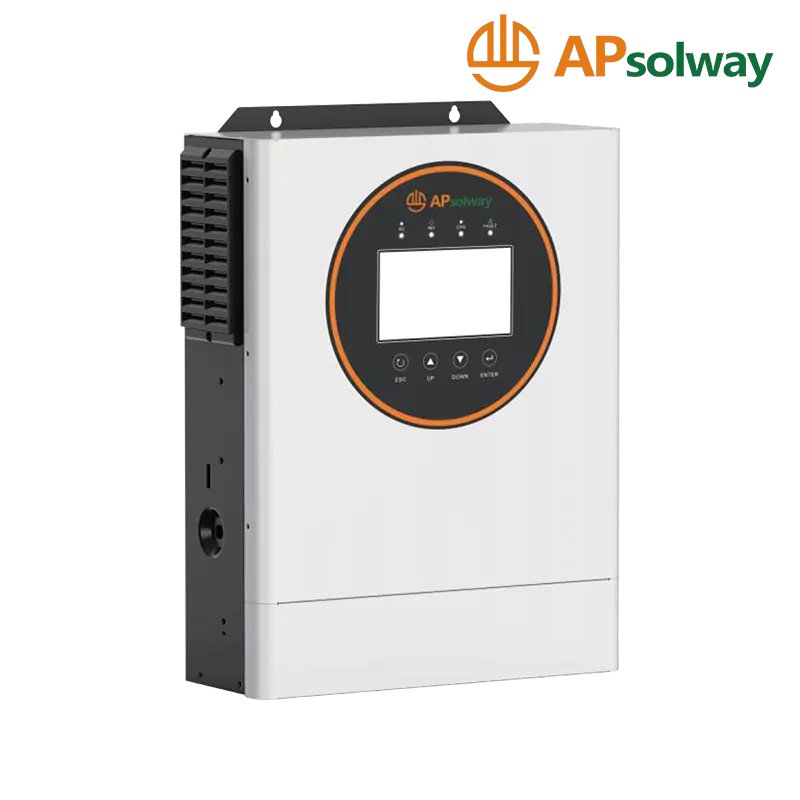

APS3600-24 5.0kW Single Phase Off-Grid Inverter
- Built-in 160A Solar Charger.
- Wide PV Input VoltageRange 40-450V.
- 27A MAX PV Input.
- Dual AC In & Dual AC Out*.
- Support Meter/CT Connection.
- Support Lithium/Lead-acid Batter.
- Lithium Battery Activation.
- Support Generator ATS Control.
- Feed-in to Grid.
- WiFi Monitoring(optional/built-in).
The APS6500-48 6.5kW Single-Phase Off-Grid Inverter is specifically designed for residential and small-scale commercial power environments, aiming to provide a stable and intelligent off-grid power supply. With a rated output power of 3.6kW, it boasts exceptional load-bearing capabilities; its peak surge power reaches 7.2kVA, allowing it to effortlessly handle the startup demands of various inductive loads. The device features a pure sine wave output and offers comprehensive support for 208V, 220V, 230V, and 240V voltage systems.
In terms of PV integration performance, the APS3600-24 demonstrates robust capabilities, featuring a built-in 100A MPPT solar charge controller that supports a maximum PV input power of 5000W. Its wide MPPT operating voltage range of 40–450V ensures that high energy conversion efficiency is maintained across varying weather and lighting conditions. This model offers seamless compatibility with both 24V lithium-ion and lead-acid battery systems, and integrates a lithium battery activation function to effectively address common maintenance challenges associated with energy storage systems. Its peak efficiency in battery mode reaches an impressive 92.7%. Furthermore, the product features dual AC outputs, grid-tie feeding capabilities, and an optional Wi-Fi smart monitoring function, allowing users to manage their energy usage in real-time via a mobile app. The device features a compact and sophisticated design, weighing in at just 6.2kg.
| MODEL | APS3600-24 |
| AC Input | |
| Rated Input Voltage(VAC) | 208/220/230/240;L+N+PE |
| Voltage Range (VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
| Frequency (Hz) | 50/60(Auto Adaptive) |
| AC Output | |
| Rated Capacity(kW) | 3.6 |
| Surge Power (KVA) | 72 |
| Voltage(VAC) | 208/220/230/240 |
| Power Factor (PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time(ms) | 10(APP/UPS mode)/20(GEN mode) |
| Wave Form | Pure Sine Wave |
| Overlbad Capacity(Battery Mode) | 60s@102%-110%load;10s@110%-130%load; 3s@130%-150%load;0.2s@>150%load |
| Max.Eficiency(Battery Mode) | 92.7%@24VDC |
| Parallel Operation Support | NA |
| Charger (PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV input current /power | 18A/5000w |
| MPPT RangeaOperating Voltage (VDC) | 40-450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current(A) | 100 |
| Max AC Charge Current(A) | 100 |
| Max. Charge Current(PV+AC)(A) | 100 |
| Battery | |
| Rated Voltage (VDC) | 24 |
| Floating Charge Voltage (VDC) | 27 |
| Overcharge Protection(VDC) | 30.5 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interface | RS232/USB/RS485(optional) |
| Monitoring | WiFi(Optional) |
| General Data | |
| ngress Protection | IP43 |
| Warranty | 2 years |
| Operating Temperature | -10℃-60℃ |
| Relative Humidity | 5%～95%(Non-condensing) |
| Storage Temperature | -15℃-60℃ |
| Net Weight(kg) | 6.2 |
| Dimensions(W*H*D) | 420*284*94mm |
| Max. Operating Altitude | 4000m(Derating above 1000m) |
Product specifications are subject to change without further notice.
