HCC01-SM-0100/0120H-EP-D Single Phase Hybrid Inverter Colorful Touch LCD
- 1. Colorful touch LCD, lP66 protection degree, Max. 16 pcs parallel for on-grid and off-grid operation.
- 2. Ac coupling to retrofit existing solar system, support multiple batteries parallel.
- 3. Max.charging/discharging current of 250A, 6 time periods for battery charging/discharging.
- 4. Support storing energy from diesel generator.
- Suitable for Low-Power Loads.
- Single-phase motors are suitable for light industry, small household appliances, fans, water pumps, and other low-power equipment.
- Low cost, flexible installation, meeting the needs of home and small commercial scenarios.
Product Parameters
 |
 |
 |
| Colorful touch LCD, Ip66 protection degree | Ac coupling to retrofit existing solar system | Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel |
 |
 |
 |
| Max. charging/discharging current of 135A | 6 time periods for battery charging/discharging | Support storing energy from diesel generator |
Certifications

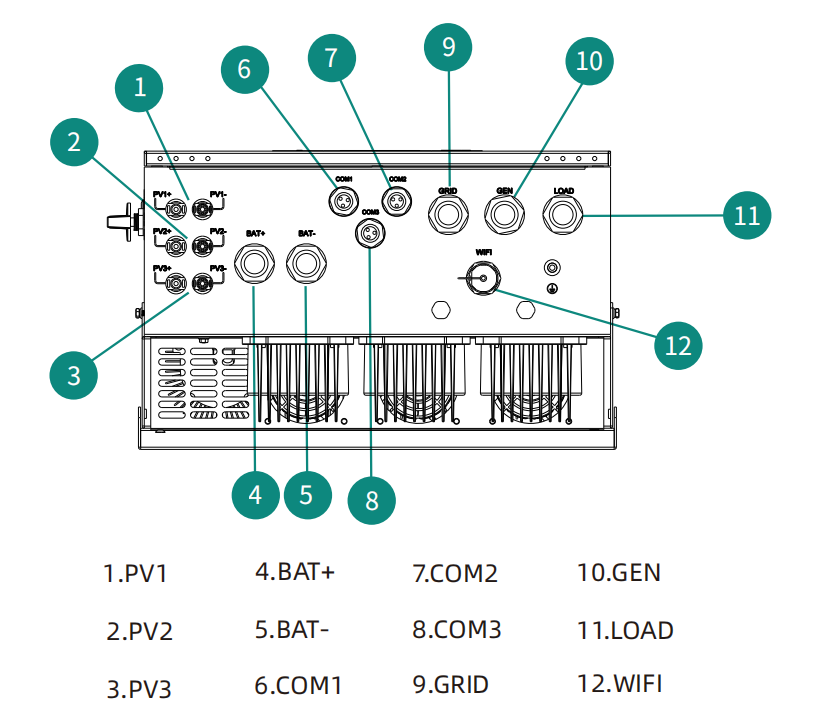

Product Characteristics
Lcd Display Icons

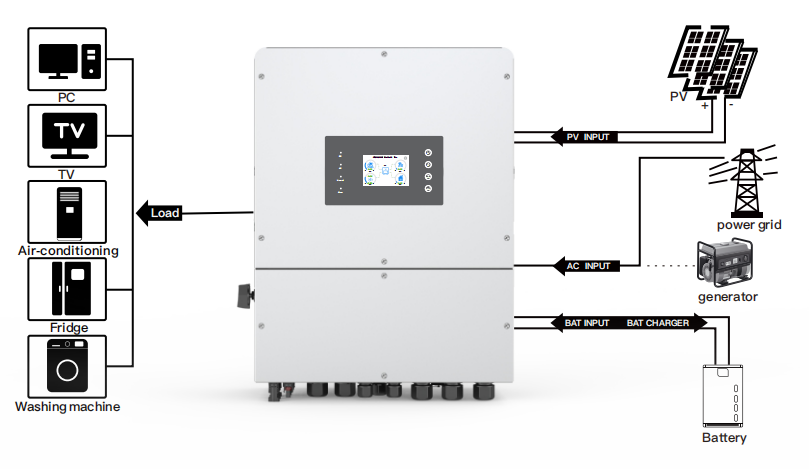

Basic System Architecture
Data Sheet
| Model | HCC01-SM-0100H-EP-D | HCC01-SM-0120H-EP-D |
| Battery Input Data | ||
| Battery Type | Lead-acid or Li-lon | |
| Battery Voltage Range(V) | 40-60 | |
| Max.Charging Current(A) | 220 | 250 |
| Max.Discharging Current(A) | 220 | 250 |
| Charging Curve | 3 Stages/Equalization | |
| External Temperature Sensor | yes | |
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | |
| PV String Input Data | ||
| Max.DC Input Power(W) | 13000 | 15600 |
| PV Input Voltage(V) | 370V(125V~500V) | |
| MPPT Range(V) | 150~425V | |
| Full Load DC Voltage Range | 200~425V | |
| Start-up Voltage(V) | 125V | |
| PVInput Current(A) | 26+26+26 | 26+26+26 |
| No.of MPPT Trackers | 3 | 3 |
| No.of Strings Per MPPT Tracker | 1+1+1 | 1+1+1 |
| AC Input/Output Data | ||
| Rated AC Output and UPS Power(W) | 10000 | 12000 |
| Max.AC Output Power(W) | 11000 | 13200 |
| Peak Power(o ffgrid) | 2 times of rated power,10 S | |
| AC Input/Output Rated Current(A) | 45.5/43.5 | 54.6/52.2 |
| Max.AC Input/Output Current(A) | 50/47.9 | 60/57.4 |
| Max.Continuous AC Passthrough(A) | 60 | 60 |
| Power Factor | 0.8 leading-0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz;220/230Vac | |
| Grid Type | Single Phase | |
| Total Harmonic Distortion (THDi) | <3%(of nominal power) | |
| DC current injection | <0.5%In | |
| Efficiency | ||
| Max.Efficiency | 97.60% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | >99% | |
| Protection | ||
| PVArC Fault Detection | Integrated | |
| PV Input Lightning Protection | Integrated | |
| Anti-islanding Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Over Voltage Category | Integrated | |
| Surge Protection | DC Typel/AC Type II | |
| Over Voltage Category | DC Typel/AC Type II | |
| Certifications and Standards | ||
| Grid Regulation | IEC61727/IEC 62116, EN 50549-1 | |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |
| General Data | ||
| Operating Temperature Range(℃) | -40~60℃,>45℃ Derating | |
| Cooling | Smart cooling | |
| Noise(dB) | <50 dB | |
| Communication with BMS | Rs485;CAN | |
| Monitoring mode | WIFI, APP | |
| Weight(kg) | 31 | |
| Cabinet size(mm) | 440W×570H×265D(Excluding connectors and brackets) | |
| Protection Degree | IP66 | |
| Installation Style | Wall-mounted | |
| Warranty | 5Years(10 Years Optional) | |
