HCC01-TM-0060/0080/0100/0120H-EP 48V Low Voltage Battery Three Phase Hybrid Inverter
- Three-Phase Power Supply for More Stable Power.
- Supports three-phase power output, providing a balanced and stable power supply for high-power equipment and industrial loads.
- The three-phase system effectively reduces the impact of single-phase loads on the power grid, avoids voltage fluctuations, and protects equipment lifespan.
- 1. 100% three-phase unbalanced output, with each phase capable of delivering up to 50% of the rated power. Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
- 2. AC coupling to retrofit existing solar system, Max.charging/discharging current of 240A.
- 3. 48V low voltage battery, transformer isolation design, 6 time periods for battery charging/discharging, Support storing energy from diesel generator.
Product Parameters
 |
 |
 |
| 100% three-phase unbalanced output, with each phase capable of delivering up to 50% of the rated power | Ac coupling to retrofit existing solar system | Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel |
 |
 |
 |
| Max. charging/discharging current of 135A | 48V low-voltage battery. transformer isolation design | 6 time periods for battery charging/discharging |
 |
||
| Support storing energy from diesel generator |
Certifications

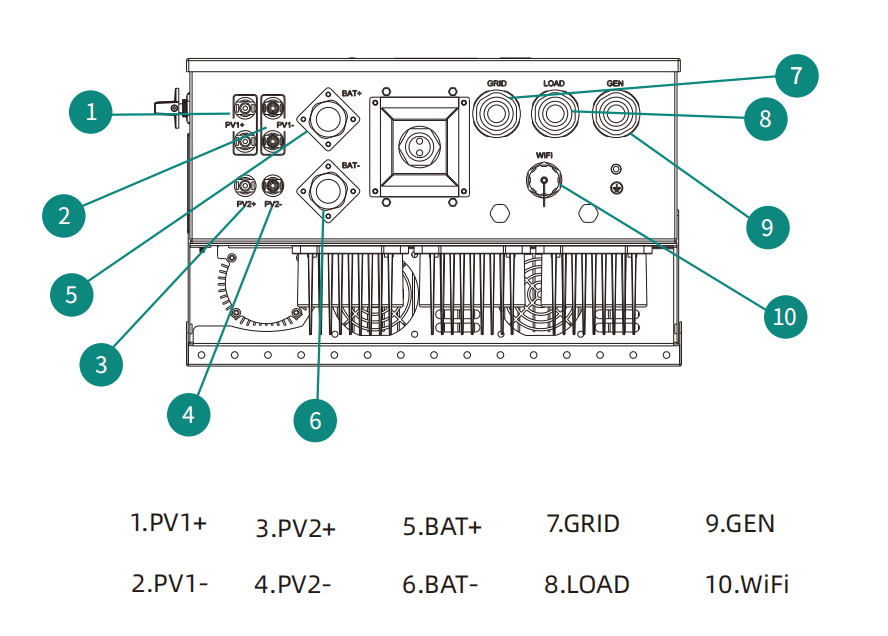

Product Characteristics
Lcd Display Icons

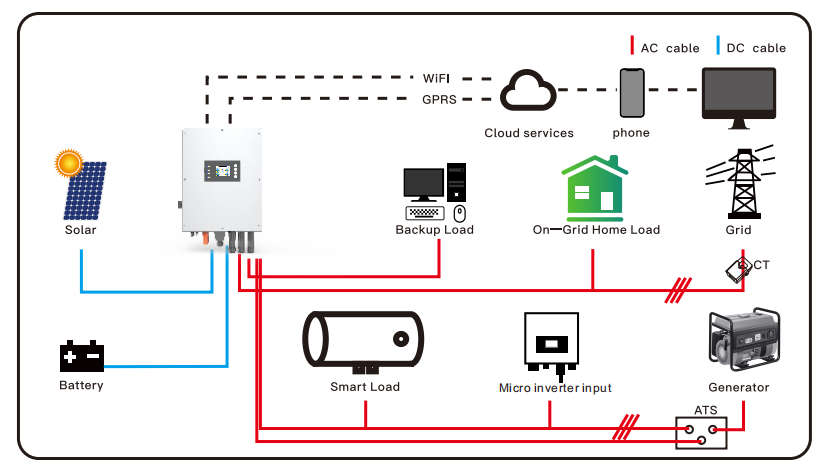

Basic System Architecture
Data Sheet
| Model | HCC01-TM-0060H-EP | HCC01-TM-0080H-EP | HCC01-TM-0100H-EP | HCC01-TM-0120H-EP |
| PV String Input | ||||
| Max.DC Input Power(W) | 7800 | 10400 | 13000 | 15600 |
| Rated PV Input Voltage (V) | 550(160-800) | |||
| Start-up Voltage (V) | 160 | |||
| MPPT Voltage Range(V) | 200-650 | |||
| Full Load MPPT Voltage Range(V) | 350-650 | |||
| Max.DC Input Current(A) | 13+13 | 26+13 | ||
| Max.DC Short Circuit Current(A) | 17+17 | 34+17 | ||
| No.of MPPT Trackers | 2 | |||
| No.of Strings per MPPT Tracker | 2+1 | |||
| AC Input/Output Data | ||||
| Rated AC Output Power(W) | 6000 | 8000 | 10000 | 12000 |
| Max AC Output Power(W) | 6600 | 8800 | 11000 | 13200 |
| AC Input/Output Rated Current(A) | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max.AC Input/Output Current(A) | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 |
| Max.Three-phase Unbalanced Output Current(A) |
13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 |
| Max Output short circuit current(A) | 75 | |||
| Max.Continuous AC Passthrough(A) | 45 | |||
| Peak Power(off grid) | 2 times of rated power,10S | |||
| Power Factor | 0.8 leading-0.8 lagging | |||
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac,230/400Vac | |||
| Grid Type | Three Phase | |||
| Total Harmonic Distortion (THDi) | <3% | |||
| DC Current Injection | <0.5%In | |||
| Battery | ||||
| Battery Type | Lead-acid or Lithium-ion | |||
| Battery Voltage Range(V) | 40-60 | |||
| Max.Charging Current(A) | 120 | 160 | 200 | 240 |
| Max.Discharging Current(A) | 120 | 160 | 200 | 240 |
| External Temperature Sensor | Yes | |||
| Charging Curve | 3 Stages /Equalization | |||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||
| Efficiency | ||||
| Max.Efficiency | 97.6% | |||
| Euro Efficiency | 97.0% | |||
| MPPT Efficiency | 99.0% | |||
| Protection | ||||
| Anti-islanding Protection | Yes | |||
| PV String Input Reverse Polarity | Yes | |||
| Insulation Resistor Detection | Yes | |||
| Residual Current Monitoring Unit | Yes | |||
| Output Over Current Protection | Yes | |||
| Output Shorted Protection | Yes | |||
| Output overvoltage protection | Yes | |||
| Photovoltaic input lightning | Yes | |||
| Surge Protection | DC Type Ⅲ/AC Type Ⅲ | |||
| Over Voltage Category | DCType II/AC Type Ⅲ | |||
| Certifications and Standards | ||||
| Grid Regulation | IEC61727/62116, EN50549-1 | |||
| Safety EMC/Standard | IEC/EN61000-6-1/2/3/4, IEC/EN62109-1, IEC/EN62109-2 | |||
| General Data | ||||
| Operating Temperature Range(℃) | -40-60℃,>45℃Derating | |||
| Cooling | Smart Cooling | |||
| Noise(dB) | ≤50 dB | |||
| Communication to BMS | RS485;CAN | |||
| Monitoring mode | Wi-Fi+APP | |||
| Weight(kg) | 34 | |||
| Size(W×Hx Dmm) | 446W×576H×255D(Excluding Connectors and Brackets) | |||
| Ingress Protection | IP66 | |||
| Installation Style | Wall-mounted | |||
| Warranty | 5 Years(10 Years Optional) | |||
