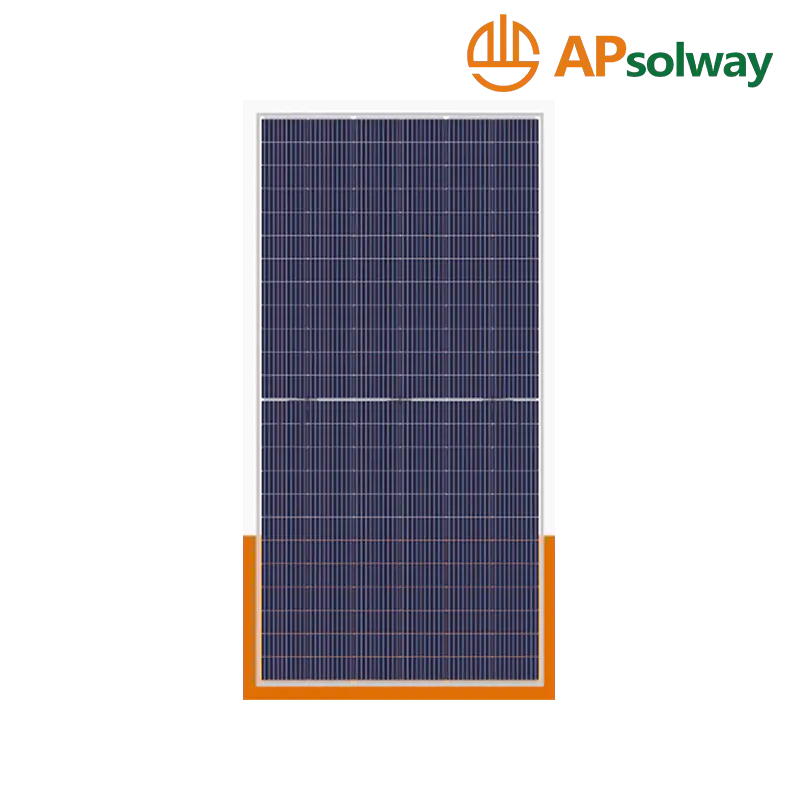

620W 144 Pieces of Double Glass Half-piece Monocrystalline Solar Photovoltaic Module
- Built for the demands of modern utility-scale and commercial solar installations, the 620W Double Glass Half-Cut Monocrystalline PV Module combines cutting-edge TOPCon cell technology with robust structural engineering to deliver outstanding power output and long-term reliability in a single, high-performance package.
- At the core of this module lies a fully upgraded Multi-Busbar TOPCon (MBB) cell design featuring 10 to 16 busbars per cell. Compared to conventional busbar configurations, this architecture significantly improves current collection across the cell surface, reduces internal resistive losses, and ensures a more consistent and stable power output across the full service life of the module — even under variable irradiance conditions.
- Integral component by the approval of 2400pa wind load and 5400pa snow load.
- Power temperature coefficient as low as -0.32%/K.
- The unique circuit design reduces the hot spot temperature and reduces the power loss, and improves the power generation of the module.
- Relative conversion efficiency≥97% under 200W/m2 low light, Lower sealing loss, more suitable for high-efficiency modules.
- The authoritative test of anti-PID (potential-induced degradation) under severe conditions (85°C/85%RH, 96 hours), the probability of degradation caused by the PID phenomenon is minimized.
Product Parameters
| Type family: | RJxxxM10-144(xxx=555-620,in steps of 5W,144 cells) | |||||
| Pmp [W] Tolerance of rating [%]:±3 |
Voc[V] | Isc[A] | Vmp[V] | Imp[A] | Pmax[W] | Efficiency% |
| RJ555SM10-144 | 50.26 | 13.46 | 43.09 | 12.88 | 555 | 20.5 |
| RJ560SM10-144 | 50.49 | 13.52 | 43.25 | 12.95 | 560 | 20.7 |
| RJ565SM10-144 | 50.64 | 13.59 | 43.37 | 13.03 | 565 | 20.9 |
| RJ570SM10-144 | 50.76 | 13.67 | 43.49 | 13.11 | 570 | 21.1 |
| RJ575SM10-144 | 50.89 | 13.74 | 43.63 | 13.18 | 575 | 21.3 |
| RJ580SM10-144 | 51.00 | 13.83 | 43.74 | 13.26 | 580 | 21.5 |
| RJ585SM10-144 | 51.17 | 13.91 | 43.85 | 13.34 | 585 | 21.7 |
| RJ590SM10-144 | 51.23 | 13.99 | 43.97 | 13.42 | 590 | 21.9 |
| RJ595SM10-144 | 51.35 | 14.08 | 44.08 | 13.50 | 595 | 22.1 |
| RJ60OSM10-144 | 51.49 | 14.15 | 44.22 | 13.57 | 600 | 22.3 |
| RJ605SM10-144 | 51.62 | 14.22 | 44.35 | 13.64 | 605 | 22.5 |
| RJ610SM10-144 | 51.68 | 14.33 | 44.41 | 13.74 | 610 | 22.7 |
| RJ615SM10-144 | 51.75 | 14.42 | 44.47 | 13.83 | 615 | 22.9 |
| RJ62OSM10-144 | 51.81 | 14.52 | 44.50 | 13.93 | 620 | 23.1 |
