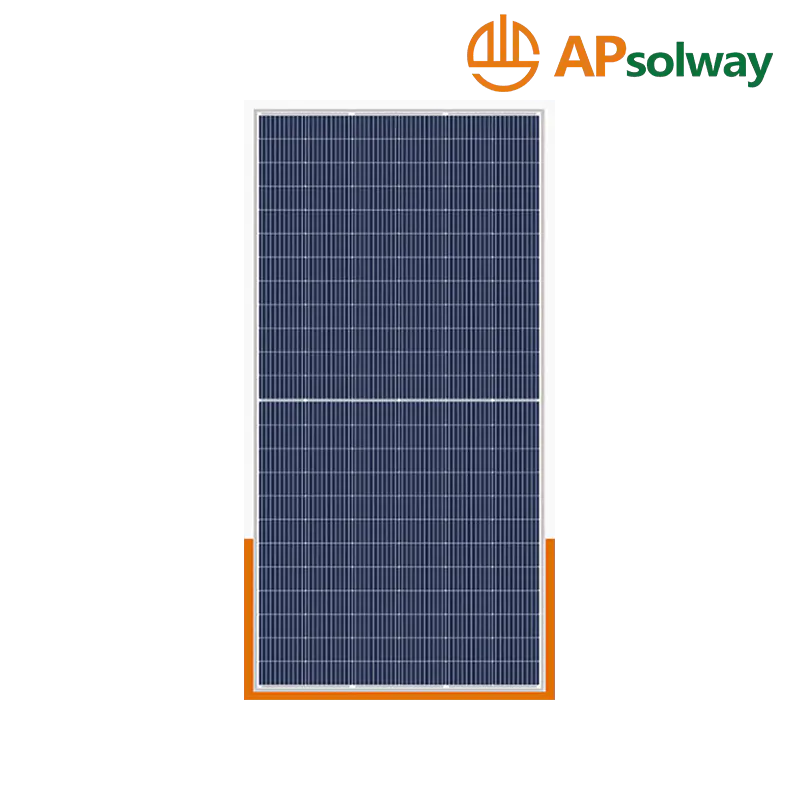

600W 144 Single Glass Half-chip Monocrystalline Solar Photovoltaic Module
- Multi-busbar TOPCon (MBB)10 busbar cells are used. Fully upgraded to 10 or 16 busbar cells, with stronger current collection capability and more stable power output.
- The half-cut cell circuit configuration effectively reduces hot spot temperatures and resistive power losses within each cell string, directly improving overall module power generation performance and extending long-term component reliability. With a power temperature coefficient of only -0.32%/K, the module maintains superior output stability at high operating temperatures, making it well-suited for hot-climate and high-irradiance installations.
- Structurally, the module is certified to withstand wind loads of 2,400 Pa and snow loads of 5,400 Pa, ensuring dependable performance in demanding environmental conditions including coastal, high-altitude, and heavy-snowfall regions.
- Relative conversion efficiency≥97% under 200W/m2 low light, Lower sealing loss, more suitable for high-efficiency modules.
- The authoritative test of anti-PID (potential-induced degradation) under severe conditions (85°C/85%RH, 96 hours), the probability of degradation caused by the PID phenomenon is minimized.
Product Parameters
| Type family: | RJxxxM10-144(xxx=555-620,in steps of 5W,144 cells) | |||||
| Pmp [W] Tolerance of rating [%]:±3 |
Voc[V] | Isc[A] | Vmp[V] | Imp[A] | Pmax[W] | Efficiency% |
| RJ555SM10-144 | 50.26 | 13.46 | 43.09 | 12.88 | 555 | 20.5 |
| RJ560SM10-144 | 50.49 | 13.52 | 43.25 | 12.95 | 560 | 20.7 |
| RJ565SM10-144 | 50.64 | 13.59 | 43.37 | 13.03 | 565 | 20.9 |
| RJ570SM10-144 | 50.76 | 13.67 | 43.49 | 13.11 | 570 | 21.1 |
| RJ575SM10-144 | 50.89 | 13.74 | 43.63 | 13.18 | 575 | 21.3 |
| RJ580SM10-144 | 51.00 | 13.83 | 43.74 | 13.26 | 580 | 21.5 |
| RJ585SM10-144 | 51.17 | 13.91 | 43.85 | 13.34 | 585 | 21.7 |
| RJ590SM10-144 | 51.23 | 13.99 | 43.97 | 13.42 | 590 | 21.9 |
| RJ595SM10-144 | 51.35 | 14.08 | 44.08 | 13.50 | 595 | 22.1 |
| RJ60OSM10-144 | 51.49 | 14.15 | 44.22 | 13.57 | 600 | 22.3 |
| RJ605SM10-144 | 51.62 | 14.22 | 44.35 | 13.64 | 605 | 22.5 |
| RJ610SM10-144 | 51.68 | 14.33 | 44.41 | 13.74 | 610 | 22.7 |
| RJ615SM10-144 | 51.75 | 14.42 | 44.47 | 13.83 | 615 | 22.9 |
| RJ62OSM10-144 | 51.81 | 14.52 | 44.50 | 13.93 | 620 | 23.1 |
