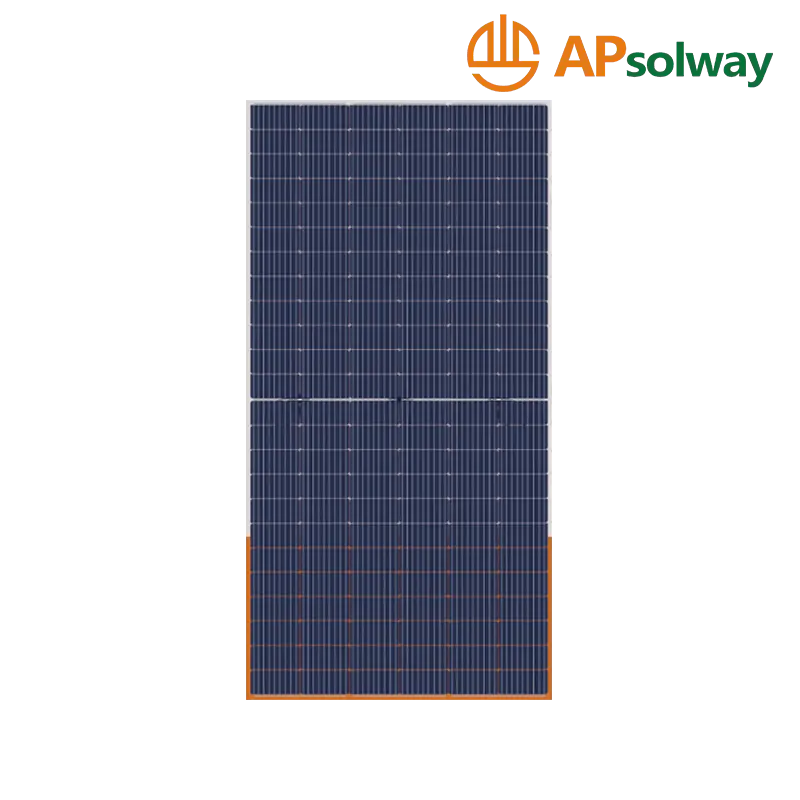

144 Cells (Half Cell )Double Glass Mono Solar Panel, Maximum Power Can Reach 550wp
- 144 cells (half cell )double glass Mono solar panel, maximum power can reach 550wp.
- Engineered for structural resilience, the module has been certified to withstand wind loads of 2,400 Pa and snow loads of 5,400 Pa, making it a dependable choice for installations in high-wind, high-altitude, and heavy-snowfall regions.
- Better the temperature coefficient of components under high temperature power attenuation less.
- The innovative half-cut cell circuit design effectively suppresses hot spot formation and reduces resistive power losses within each cell string, resulting in improved overall module efficiency and extended component service life. Advanced glass processing and precision cell surface texturing technology work in combination to maximize light absorption and deliver excellent power generation performance under low irradiance conditions, capturing more energy during cloudy periods and shoulder hours of the solar day.
- Guaranteeing the Eagie components of large-scale production under the condition of 60 ℃ / 85%,PID (potential) induced attenuation phenomenon caused by the attenuation rate fell to a minimum.
Product Parameters
| Type family: | RJxxxM10-144(xxx=510-550,in steps of 5W,144 cells) | |||
| Pmp [W]Tolerance of rating [%]:±3 | Voc[V] | Isc[A] | Vmp[V] | Imp[A] |
| RJ510M10-144 | 48.79 | 13.40 | 40.73 | 12.52 |
| RJ515M10-144 | 48.91 | 13.49 | 40.88 | 12.60 |
| RJ520M10-144 | 49.03 | 13.58 | 41.01 | 12.68 |
| RJ525M10-144 | 49.15 | 13.65 | 41.15 | 12.76 |
| RJ530M10-144 | 49.30 | 13.72 | 41.31 | 12.83 |
| RJ535M10-144 | 49.45 | 13.79 | 41.47 | 12.90 |
| RJ540M10-144 | 49.60 | 13.86 | 41.64 | 12.97 |
| RJ545M10-144 | 49.75 | 13.93 | 41.80 | 13.04 |
| RJ550M¹0-144 | 49.90 | 14.00 | 41.96 | 13.11 |
