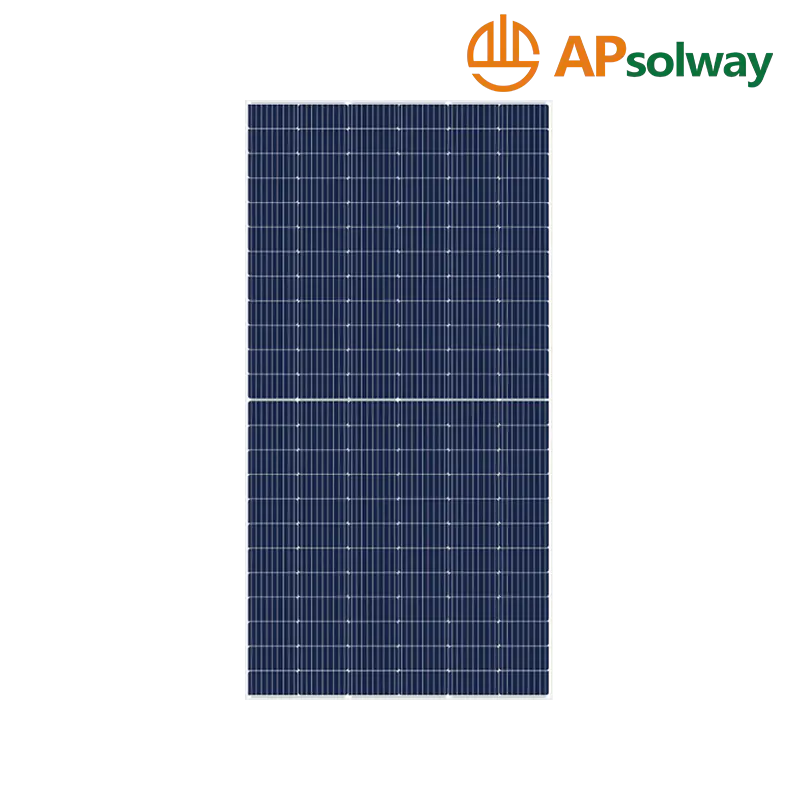

144 Pieces of Half-Piece Mono Crystal Component Output Power is Up To 550 WP
- The 550W 144-Cell Half-Cut Monocrystalline Solar PV Module delivers a peak output power of up to 550Wp, combining proven monocrystalline cell technology with an optimized half-cut cell architecture to achieve high conversion efficiency and reliable long-term performance across a wide range of installation environments.
- Integral component by the approval of 2400pa wind load and 5400pa snow load.
- The module’s superior temperature coefficient ensures that power output degradation at elevated operating temperatures is kept to a minimum, preserving strong energy yield performance even during peak summer conditions.
- The unique circuit design reduces the hot spot temperature and reduces the power loss,and improves the power generation of the module.
- By using excellent glass and battery surface texturing technology,in order to achieve excellent environment under the low light environment.
- Guaranteeing the Eagie components of large-scale production under the condition of 60 ℃ / 85%,PID (potential) induced attenuation phenomenon caused by the attenuation rate fell to a minimum.
Product Parameters
| Type family: | RJxxxM10-144(xxx=510-550,in steps of 5W,144 cells) | |||
| Pmp [W]Tolerance of rating [%]:±3 | Voc[V] | Isc[A] | Vmp[V] | Imp[A] |
| RJ510M10-144 | 48.79 | 13.40 | 40.73 | 12.52 |
| RJ515M10-144 | 48.91 | 13.49 | 40.88 | 12.60 |
| RJ520M10-144 | 49.03 | 13.58 | 41.01 | 12.68 |
| RJ525M10-144 | 49.15 | 13.65 | 41.15 | 12.76 |
| RJ530M10-144 | 49.30 | 13.72 | 41.31 | 12.83 |
| RJ535M10-144 | 49.45 | 13.79 | 41.47 | 12.90 |
| RJ540M10-144 | 49.60 | 13.86 | 41.64 | 12.97 |
| RJ545M10-144 | 49.75 | 13.93 | 41.80 | 13.04 |
| RJ550M¹0-144 | 49.90 | 14.00 | 41.96 | 13.11 |
