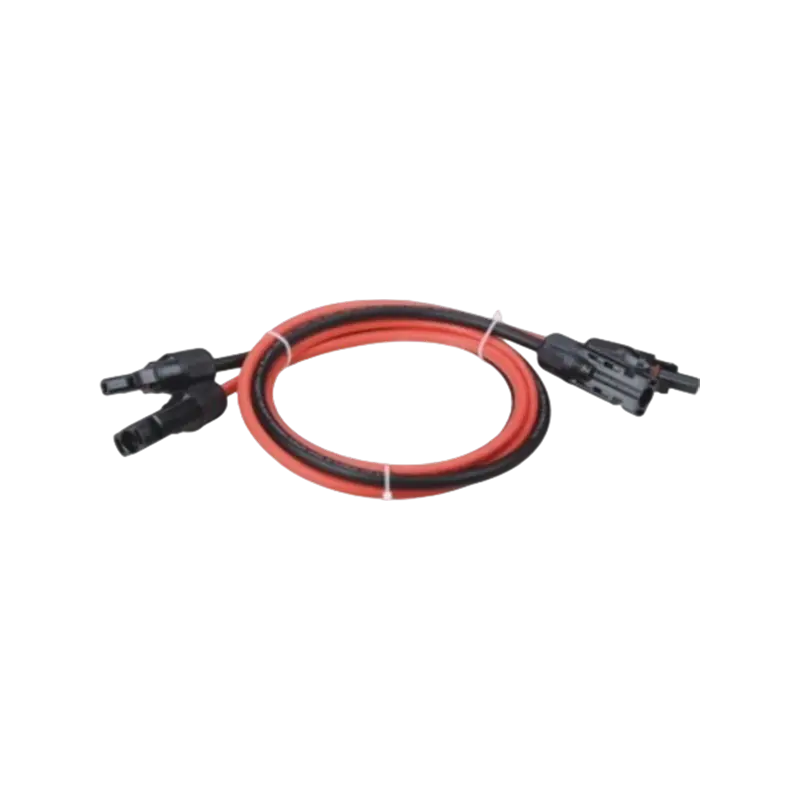

Solar DC Cables
- APsolway premium solar DC cables are essential core connectors in photovoltaic systems, designed to meet the demanding operational requirements of new energy equipment. In outdoor environments, cables must withstand direct sunlight, rain, snow, and extreme temperature fluctuations.
- Thanks to their three-layer co-extruded weather-resistant construction and an outer layer of UV-resistant cross-linked polyethylene, these cables withstand temperature fluctuations ranging from -40°C to 90°C. They maintain stable insulation performance even in high-humidity coastal areas or dusty deserts, effectively preventing the risk of leakage due to aging and cracking, significantly extending system maintenance cycles.
- Safety is another key feature. UL 4703 certification means the cables meet international standards for flame retardancy, insulation resistance, and mechanical strength. In the event of an accidental short circuit, the specially formulated flame-retardant sheath slows the spread of fire, while the tight bond between the copper core and the insulation reduces the likelihood of partial discharge, providing a reliable safety barrier for photovoltaic arrays on rooftops or in commercial and industrial buildings.
- In terms of power transmission efficiency, this cable utilizes high-purity electrolytic copper conductors, treated through a wire drawing and annealing process, resulting in conductivity that’s over 8% higher than conventional cables. This low resistance reduces Joule losses during current transmission, particularly in large-scale commercial and industrial photovoltaic systems, where it can limit daily power generation losses to less than 1%, significantly improving long-term profitability.
- Furthermore, the cable’s flexible design allows for easy adaptation to diverse installation scenarios—from curved wiring on rooftop racks to underground installation in ground-mounted power plants. It seamlessly integrates with inverters, combiner boxes, and other equipment, eliminating the cost of additional adapters.
- From home users to large-scale photovoltaic power plants, APsolway premium solar DC cables, with their weather-resistant, durable, safe, and efficient features, are a key component in enhancing the stability and cost-effectiveness of photovoltaic systems.
Product Parameters
Customization of extension line processing
2.5m²4m² 6m²
