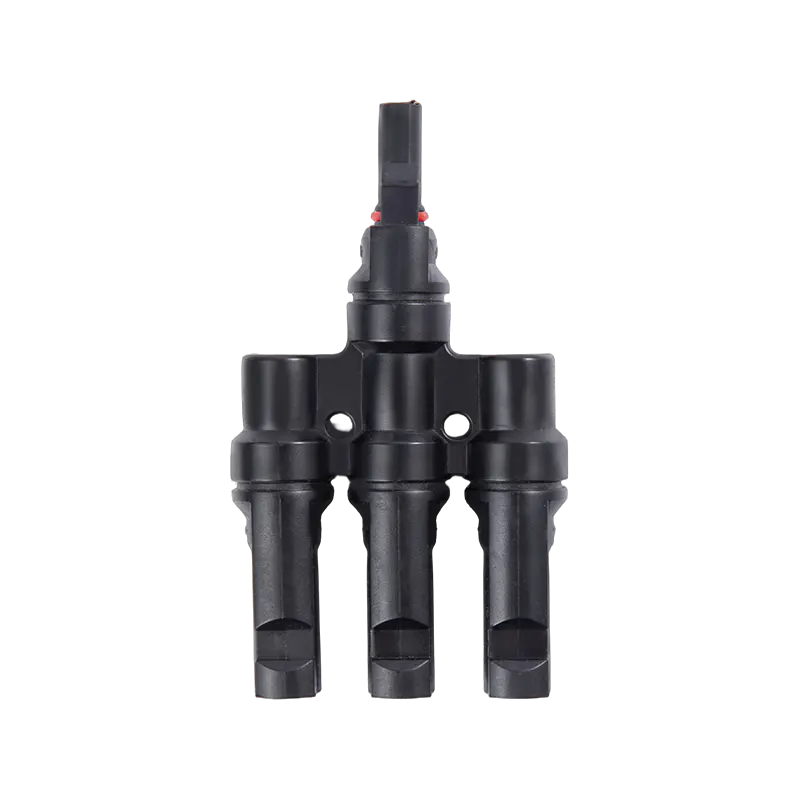

Solar Connectors
- First, it meets the highest IP68 waterproof and dustproof standards, capable of withstanding prolonged immersion in water up to 2 meters without affecting performance. Even in harsh environments such as heavy rain, humidity, and dust, it eliminates short-circuit risks, making it particularly suitable for outdoor photovoltaic power plants and rooftop distributed power generation.
- Second, it has received dual certification from the internationally recognized TUV and UL certifications, meaning it meets stringent standards for material aging resistance, current carrying capacity, and fire rating.
- For example, its contacts utilize a highly conductive nickel-plated copper process, resulting in a resistance loss of less than 0.01Ω, minimizing power loss during transmission. The housing is constructed of weather-resistant engineering plastic, capable of withstanding extreme temperature fluctuations from -40°C to 85°C, ensuring a service life of up to 25 years, perfectly matching the lifecycle of photovoltaic modules.
- Furthermore, this connector is fully compatible with the industry-standard MC4 interface specification. The snap-on design allows for quick plugging and unplugging, requiring no specialized tools for installation. Once connected, it offers 360° rotational freedom, effectively preventing stress damage caused by cable twisting.
- Whether it’s monocrystalline silicon, polycrystalline silicon, or thin-film photovoltaic panels or photovoltaic cables of varying specifications, this connector seamlessly connects, significantly reducing compatibility risks during system integration.
- For photovoltaic project installers and operators, this connector not only simplifies the installation process but also reduces ongoing maintenance costs through stable performance, making it an ideal choice for enhancing photovoltaic system reliability.
Product Parameters
| Technical data: | |
| Connector system | φ4mm/Φ6mm |
| Rated voltage | 1500V DC |
| Rated current | 30A-50A |
| Test voltage | 16kV |
| Ambient temperature range | -40°℃…+90℃ |
| Degree of protection, mated | lp67 |
| Unmated | IP2X |
| Contact resistance of plug connectors | ≤0.5mΩ |
| Safetyclass | Ⅱ |
| Contact material | Messing,verzinnt
Copper Alloy, tin plated |
| Insulation material | PC/PPO |
| Locking system | Snap-in |
| Flame class | UL-94-VO |
| Salt mist spray test, degree of severity 5 | IEC 62852 |
RELATED PRODUCTS
Solar Crimping Tool
- The APsolway Solar MC4 Connector Ratchet Crimping Tool is a professional tool for PV system cable terminations. Its core advantage lies in the safety and reliability guaranteed by its UL certification, which fully complies with international safety standards. It ensures stable connection links under the high-voltage environment of PV systems, mitigating equipment failures and safety hazards caused by poor connections.
- Designed specifically for MC4 connectors, it features a ratchet mechanism for precise pressure control. During operation, simply position the tool according to the specified procedure, and the ratchet mechanism automatically locks the pressure path, ensuring consistent pressure every time. This prevents poor contact or cable damage caused by manual pressure variations, significantly improving the consistency and security of PV cable terminations.
- The ergonomic design of the tool's handle, made of non-slip rubber, conforms to the curve of the palm, effectively reducing hand fatigue even during extended work. Furthermore, its optimized overall weight balances durability and portability, making it suitable for frequent movement and operation at outdoor PV installation sites.
- For PV installers and system maintenance personnel, this tool significantly improves work efficiency. By eliminating the need for repeated adjustments to pressure parameters, even novice operators can quickly master the essentials. Its consistent crimping quality reduces rework due to connection issues later on, making it a practical tool for ensuring the long-term, efficient operation of PV systems.
Solar DC Cables
- APsolway premium solar DC cables are essential core connectors in photovoltaic systems, designed to meet the demanding operational requirements of new energy equipment. In outdoor environments, cables must withstand direct sunlight, rain, snow, and extreme temperature fluctuations.
- Thanks to their three-layer co-extruded weather-resistant construction and an outer layer of UV-resistant cross-linked polyethylene, these cables withstand temperature fluctuations ranging from -40°C to 90°C. They maintain stable insulation performance even in high-humidity coastal areas or dusty deserts, effectively preventing the risk of leakage due to aging and cracking, significantly extending system maintenance cycles.
- Safety is another key feature. UL 4703 certification means the cables meet international standards for flame retardancy, insulation resistance, and mechanical strength. In the event of an accidental short circuit, the specially formulated flame-retardant sheath slows the spread of fire, while the tight bond between the copper core and the insulation reduces the likelihood of partial discharge, providing a reliable safety barrier for photovoltaic arrays on rooftops or in commercial and industrial buildings.
- In terms of power transmission efficiency, this cable utilizes high-purity electrolytic copper conductors, treated through a wire drawing and annealing process, resulting in conductivity that's over 8% higher than conventional cables. This low resistance reduces Joule losses during current transmission, particularly in large-scale commercial and industrial photovoltaic systems, where it can limit daily power generation losses to less than 1%, significantly improving long-term profitability.
- Furthermore, the cable's flexible design allows for easy adaptation to diverse installation scenarios—from curved wiring on rooftop racks to underground installation in ground-mounted power plants. It seamlessly integrates with inverters, combiner boxes, and other equipment, eliminating the cost of additional adapters.
- From home users to large-scale photovoltaic power plants, APsolway premium solar DC cables, with their weather-resistant, durable, safe, and efficient features, are a key component in enhancing the stability and cost-effectiveness of photovoltaic systems.
