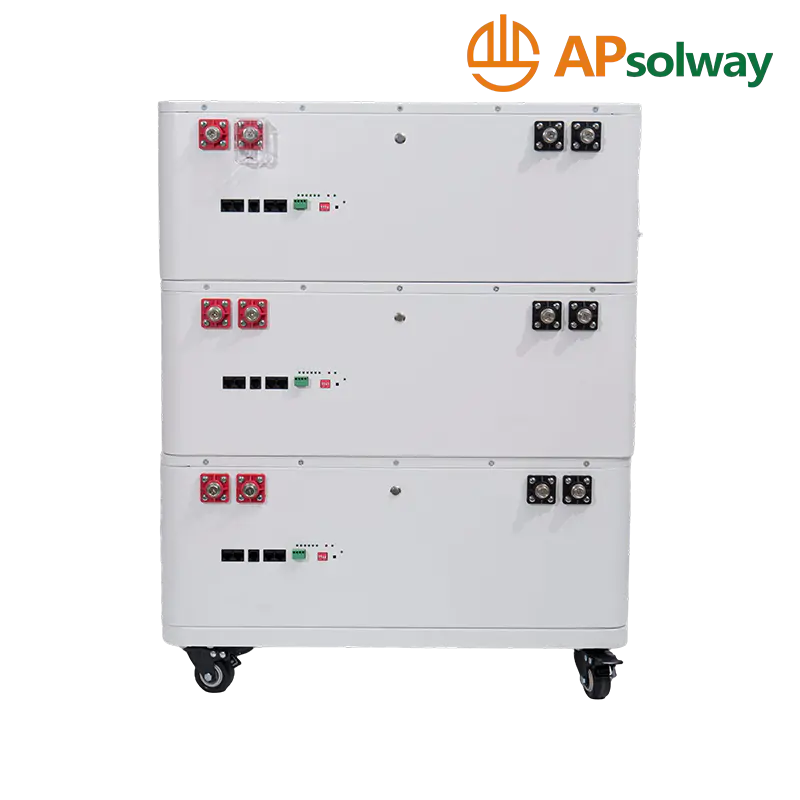

Stackable Battery Lithium Iron Phosphate Battery
- Features & Benefits
1. High cycle life
>6000 cycles @80% DOD for effectively lower total cost of ownership2. Longer service life
Low-maintenance batteries with stable chemistry. Easily monitor state of charge (SOC) of smart models.3. Built-in circuit protection
Battery Management Systems (BMS) are incorporated against abuse.4. Better storage
Up to 6 months thanks to its extremely low self-discharge (LSD) rate and no risk of sulphation.5. Quickly recharge
Save time and increase productivity with less downtime thanks to superior charge/discharge efficiency.6. Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.7. Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent. - Applications
Lithium Iron Phosphate can be used in most applications that use
Lead Acid, GEL or AGM type batteries. Suitable applications include:
• Caravan
• Marine
• Golf Car
• Buggies
• Solar Storage
• Remote Monitoring
• Switching applications and more - Cautions
• Do NOT short circuit, crush or disassemble.
• Do NOT heat or incinerate.
• Do NOT immerse in any liquid.
• Store at 50% capacity. Recharge every 3 months. The storage area should be clean, cool, dry and ventilated.
Product Parameters
| ELECTRICAL PERFORMANCE | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100 Ah |
| Capacity @20A | 300 min |
| Energy | 5120 Wh |
| Resistance | ≤20 mΩ@50%SOC |
| Self Discharge | <3%/Month |
| Cells | LFP Cell 3.2V |
| CHARGE PERFORMANCE | |
| Recommended Charge Current | 20 A |
| Maximum Charge Current | 100 A |
| Charge Cut-Off Voltage | 58.4 V |
| Reconnect Voltage | >56V |
| Balancing Voltage | <54.4V |
| Protocol(optional) | RS485//CAN |
| LED display | (Optional) |
| DISCHARGE PERFORMANCE | |
| Continuous Discharge Current | 100 A |
| Maximum Continuous Discharge Current | 105-110 A |
| Peak Discharge Cut-Off Current | 300 A(5~15 ms) |
| Discharge Cut-Off Voltage | 40V |
| Reconnect Voltage | >44.8V |
| Short Circuit Protection | 200～800 μs |
| MECHANICAL PERFORMANCE | |
| Dimension (L×WxH) | 600×450×220 mm |
| Approx.Weight | About 43±2kg |
| Terminal Type | M8 |
| Terminal Torque | 80～100 in-Ibs(9～11 N-m) |
| Case Material | Metal |
| Enclosure Protection | IP20 |
| TEMPERATURE PERFORMANCE | |
| Discharge Temperature | -4～140 F(-20～60 ℃) |
| Charge Temperature | 32～113 F(0～55℃) |
| Storage Temperature | 23～95 °F(-5～35℃) |
| High Temperature Cut-Off | 149F(65℃) |
| Reconnect Temperature | 118F(48℃) |
| COMPLIANCE | |
| Certifications | CE
UN38.3 UL1973&IEC62619 |
| Shipping Classification | UN 3480, CLASS 9 |
