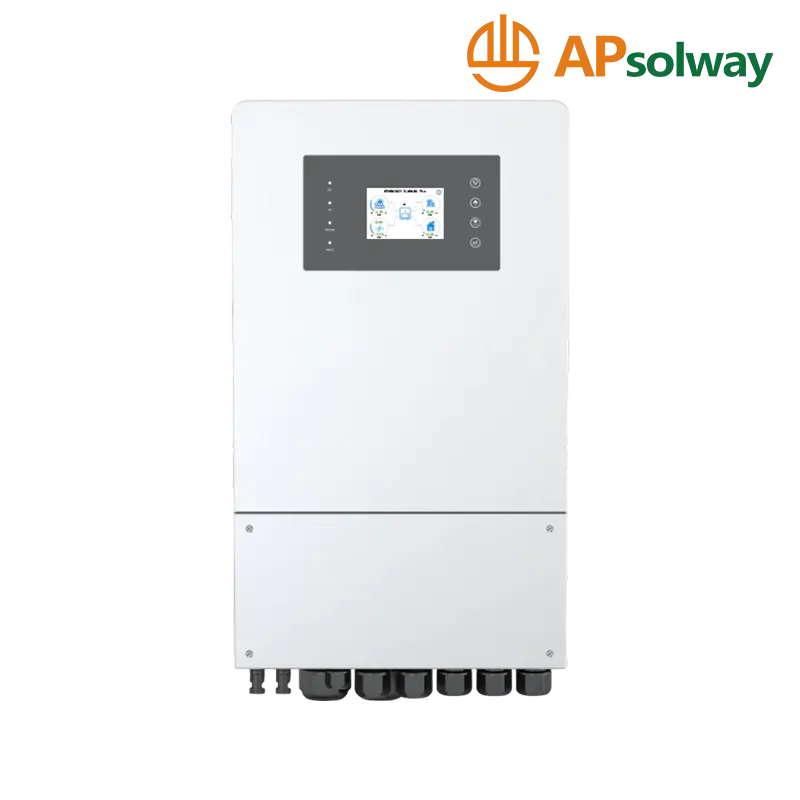

HCC04-SM-0100H-YP Single Phase Hybrid Inverter On-Grid And Off-Grid Operation
- 1. Colorful touch LCD, lP66 protection degree, Max. 16 pcs parallel for on-grid and off-grid operation.
- 2. Ac coupling to retrofit existing solar system, support multiple batteries parallel.
- 3. Max.charging/discharging current of 250A, 6 time periods for battery charging/discharging.
- 4. Support storing energy from diesel generator.
Product Parameters
 |
 |
 |
| Colorful touch LCD, Ip66 protection degree | Ac coupling to retrofit existing solar system | Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel |
 |
 |
 |
| Max. charging/discharging current of 135A | 6 time periods for battery charging/discharging | Support storing energy from diesel generator |
Certifications

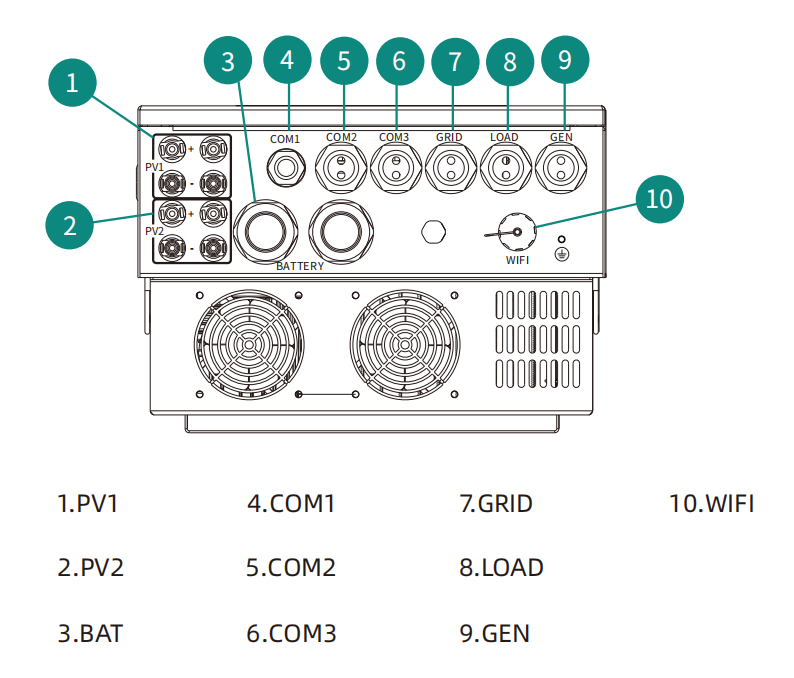

Product Characteristics
Lcd Display Icons

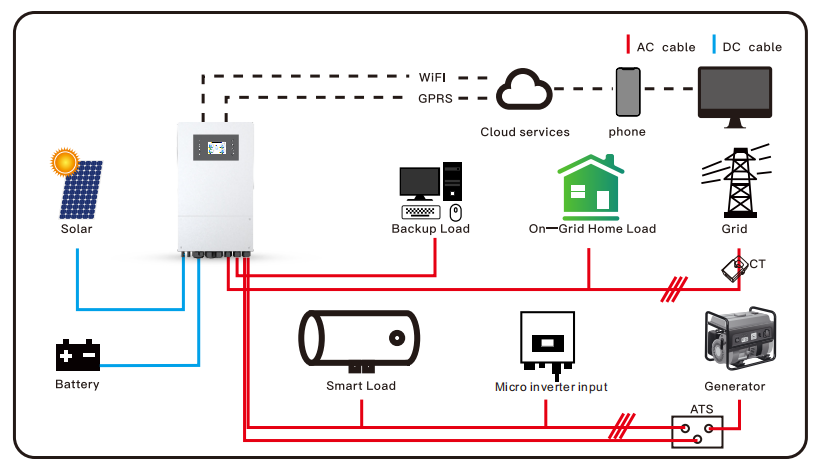

Basic System Architecture
Data Sheet
| Model | HCCO4-SM-0100H-YP |
| Battery lnput Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range(V) | 40-60 |
| Max.Charging Current(A) | 210 |
| Max.Discharging Current(A) | 210 |
| Charging Strategy for Li-lon Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max.PV access Power(W) | 20000 |
| Max.PVInput Power(W) | 16000 |
| Max.PVInput Voltage(V) | 500 |
| Start-up Voltage(V) | 125 |
| PVInputVoltage Range(V) | 125-500 |
| MPPT Voltage Range(V) | 150~425 |
| Full Load MPPT Voltage Range(V) | 200~425 |
| Rated PVInput Voltage(V) | 370 |
| Max.Operating PV Input Current(A) | 32+32 |
| Max.Input Short-Circuit Current(A) | 48+48 |
| No.of MPP Trackers/No.of Strings MPPTracker | 2/2+2 |
| Max.Inverter Backfeed Current to The Array | 0 |
| AC Input Data | |
| Rated AC Input Active Power(W) | 10000 |
| Max.ACInput Active Power(W) | 11000 |
| Peak Power(off grid)(W) | 2times of rated power,10s |
| Rated AC Input/Output Current(A) | 45.5/43.5 |
| Max.Rated AC Input/Output Current(A) | 50/47.9 |
| Max.Continuous AC Passthrough(grid to load)(A) | 50 |
| Max.Output Fault Current(A) | 100 |
| Max.Output Overcurrent Protection(A) | 140 |
| RatedInput Voltage/Range(V) | 220V/230V 0.85Un-1.1Un |
| Grid Connection Form | L+N+PE |
| Rated Input Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| Power Factor Adjustment Range | 0.8 leading-0.8 lagging |
| Total Hamonic Distortion(THDi) | <3%(of nominal power) |
| DC Injection Current | <0.5%In |
| Efficiency | |
| Max.Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | >99% |
| Equipment Protection | |
| DC Polarity Reverse Connection Protection | Yes |
| AC Output Overcurrent Protection | Yes |
| AC Output Overvoltage Protection | Yes |
| AC Output Short Circuit Protection | Yes |
| Thermal Protection | Yes |
| DC Terminal Insulation Impedance Monitoring | Yes |
| DC Component Monitoring | Yes |
| Ground Fault Current Monitoring | Yes |
| Arc fault circuit interrupter(AFCI) | Optional |
| Power Network Monitoring | Yes |
| Island Protection Monitoring | Yes |
| Earth Fault Detection | Yes |
| DC Input Switch | Yes |
| Overvoltage Load Drop Protection | Yes |
| Residual Current(RCD)Detection | Yes |
| Surge Protection Level | Type II(DC)/Type I(AC) |
| Interface | |
| Display | LCD+LED |
| Communication Interface | RS232,RS485,CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range | -40 to+60℃,>45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise(dB) | <30 dB |
| Ingress Protection(IP)Rating | IP66 |
| Inverter Topology | Non-lsolated |
| Over Voltage Category | OVCI(DC),OVCⅢ(AC) |
| Weight(kg) | 25 |
| Cabinet size(mm)(W×H×D) (Excluding connectors and brackets) |
316×438×168.5 |
| Warranty | Standard 5 years, extended warranty |
| Grid Regulation | Intelligent Air Cooling |
| Type of Cooling | IEC61727,IEC 62116,EN 50549 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN62109-2 |
